Pair of UNsprung Concealed Hinges slide on 110 degree opening 35mm boss hole full overlay
£2.19
Price includes VAT
- Posted the same working day
- Price includes VAT
- UK delivery, worked out at checkout
- Not sure on size? Ask the Advisor
Details
Pair of UNsprung Concealed Hinges
Opening angle 110º
35 mm diameter cup
O mm crank - full overlay
(The door fully covers the carcase)
UNsprung
These are the hinges required when using pressure catches
(magnetic or mechanical)
There is no resistance to the door opening thus allowing the pressure catch to operate.
Use on doors with no handles or knobs
Slide on
Twin fixing cup
Cup: Nickel-plated zinc alloy
Arm: Nickel-plated pressed steel
These hinges are offered with a choice of base plates:

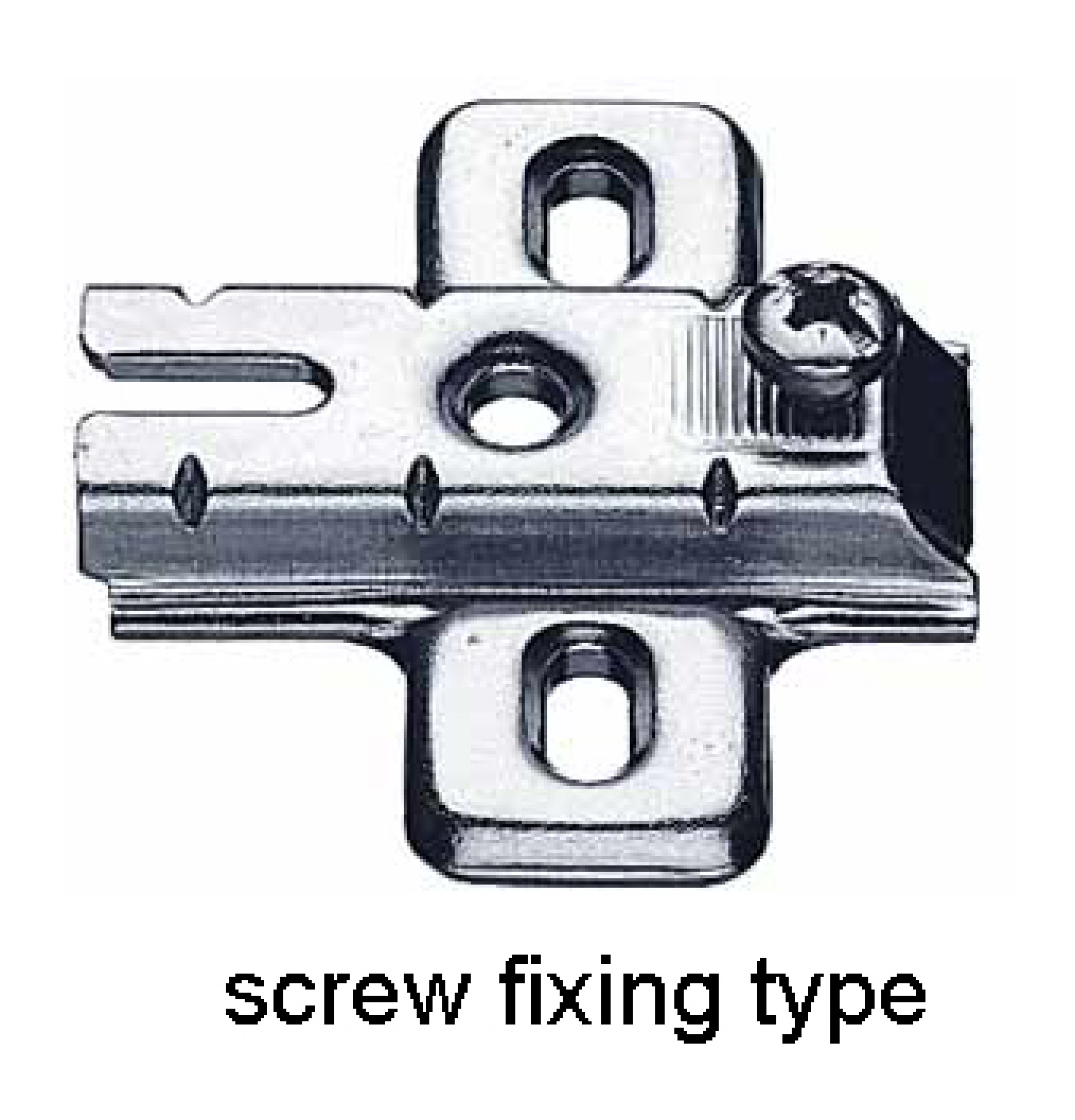

- Screw fixing - use countersunk woodscrews

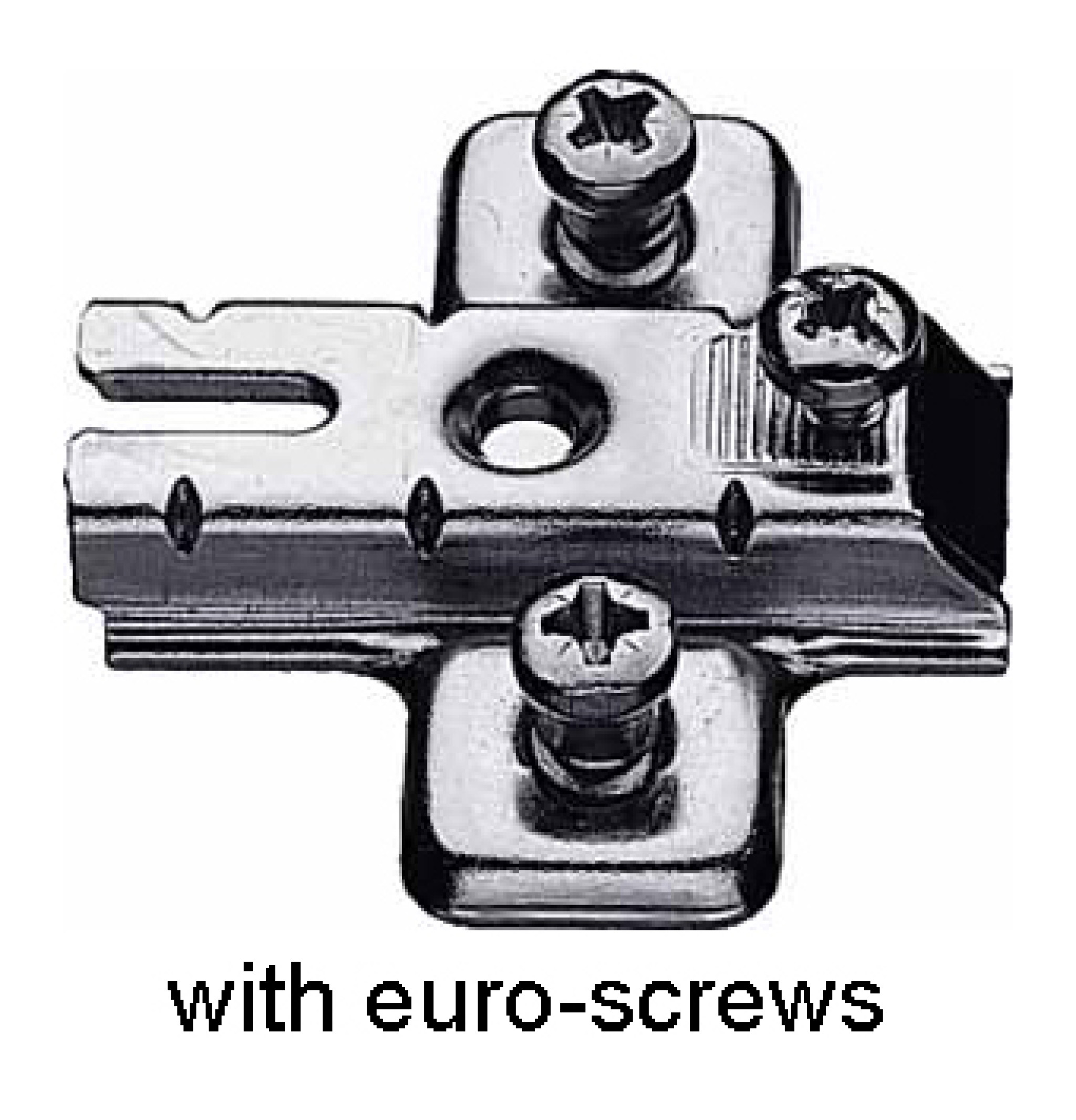

- With pre-mounted Euro screws - for when you have 5mm holes (at 32mm centres) pre drilled in carcase
see additional pictures for details
main picture shows hinges with screw fixing baseplates
if no selection is made we will supply screw fixing baseplates as standard
Please select type of baseplate below
| Category | Concealed Hinges |
|---|---|
| Product code | 7526963 |
| Price | £2.19 inc. VAT |
| Dispatch | Same working day |
